Cleanroom
Partitions

Modular, high-strength wall and ceiling systems designed for total environmental isolation. Enable rapid assembly and seamless integration for a commission-ready sterile facility.

01 / 03

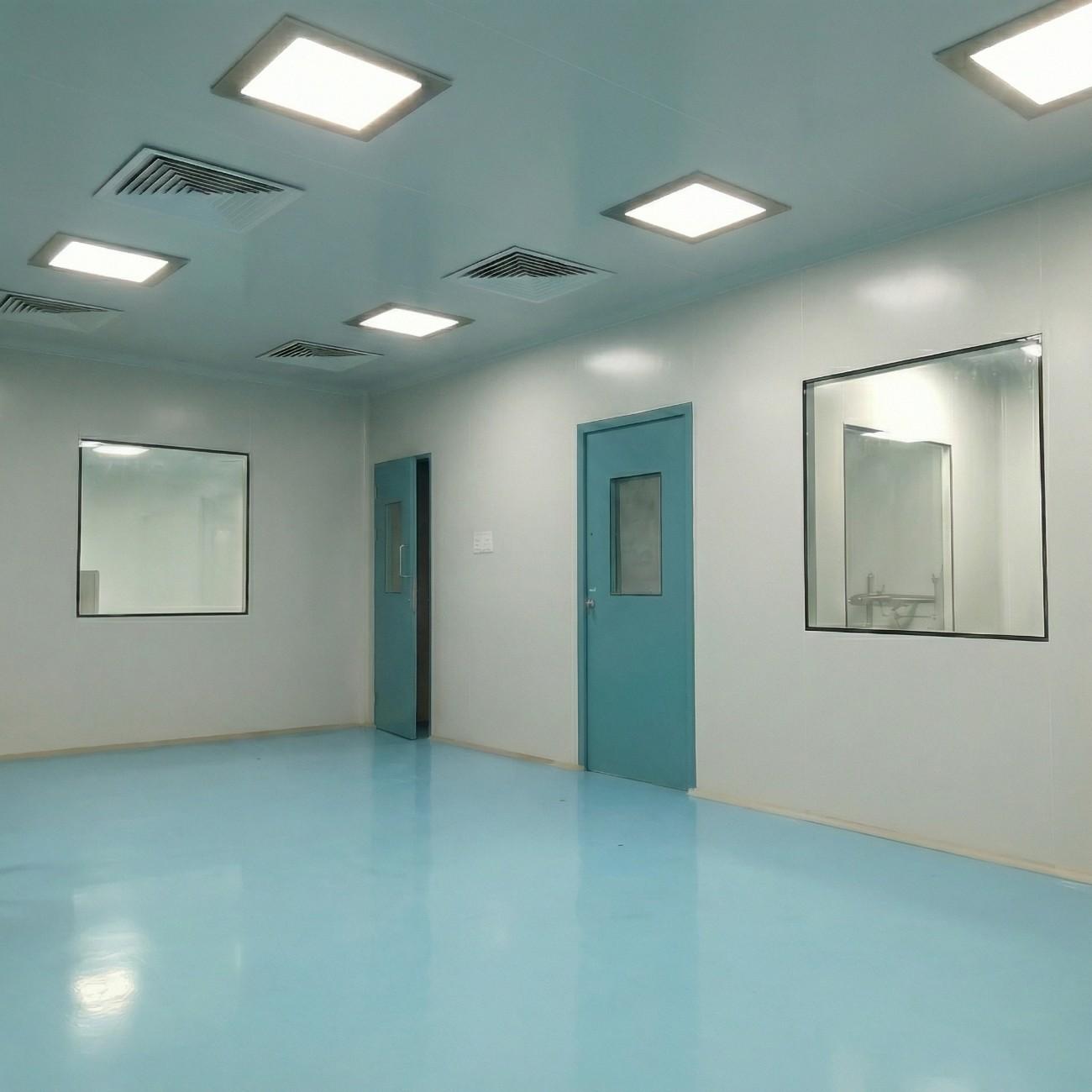

Modular Cleanroom Partition
System

Team meeting

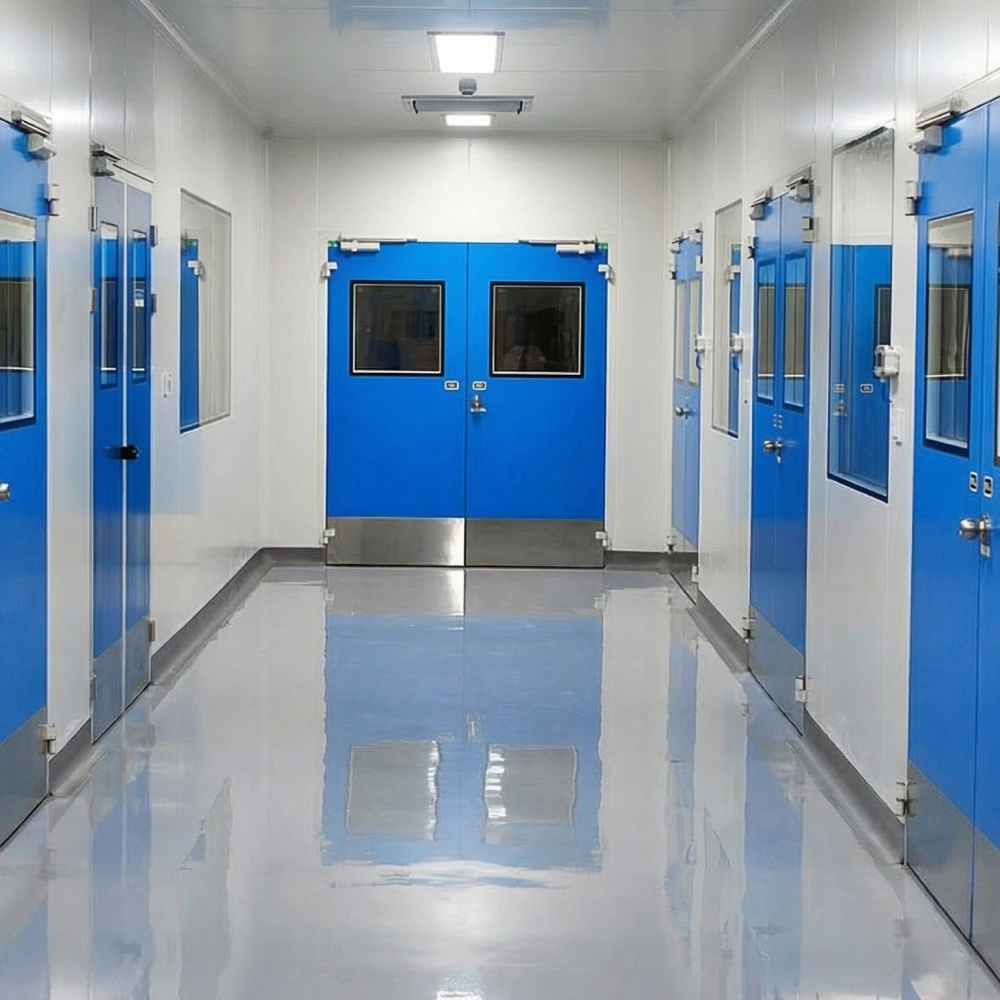

In high-precision manufacturing, the physical shell of your facility is the first line of defense against contamination. Our modular partition systems move beyond traditional masonry, offering a flexible, high-strength alternative designed for rapid assembly and total environmental isolation.

These interlocking wall and ceiling panels provide a definitive barrier that maintains pressure gradients and prevents cross-contamination, ensuring your facility is commission-ready from day one. By prioritizing a "speed-to-market" approach, we enable you to scale or reconfigure your production lines with minimal dust and zero structural downtime.

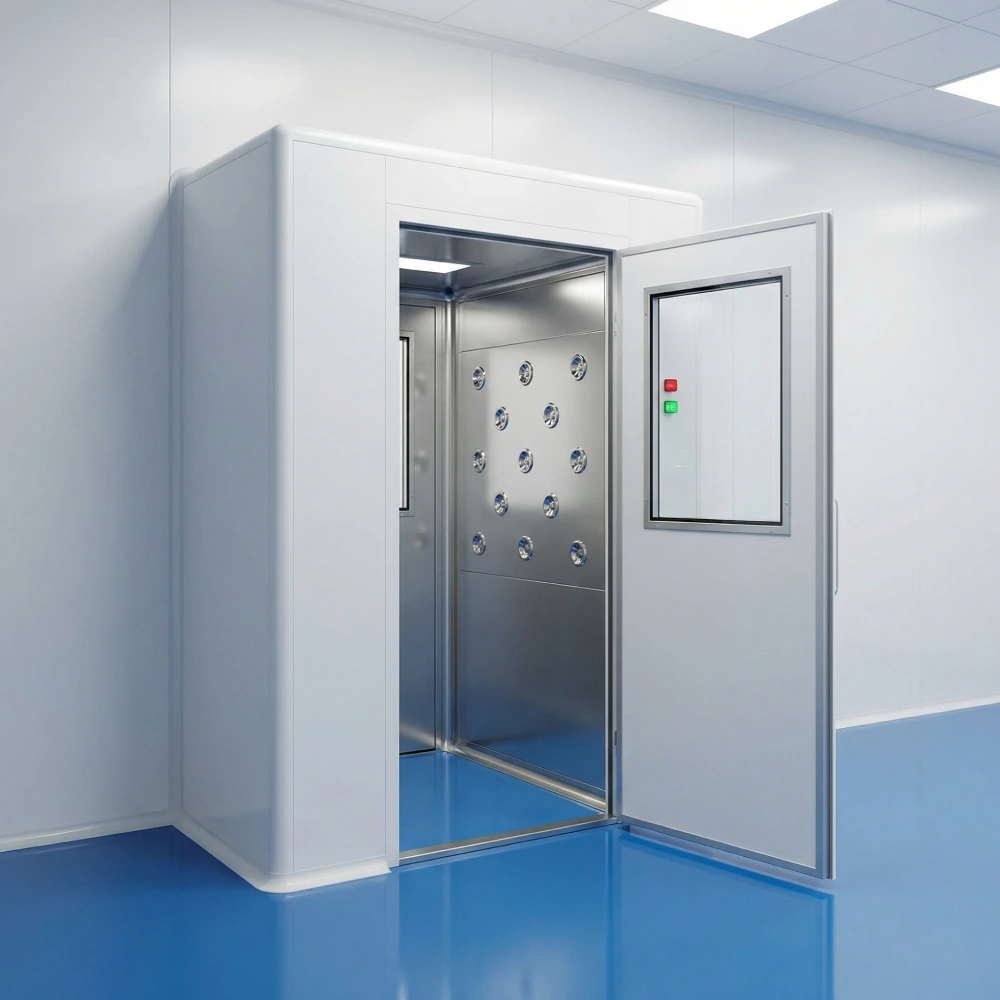

Working

Advanced Panel Integrity

The performance of a partition is defined by its core and surface engineering. Every HVAX panel is a precision-manufactured sandwich structure designed to remain inert and particle-free under the most demanding conditions.

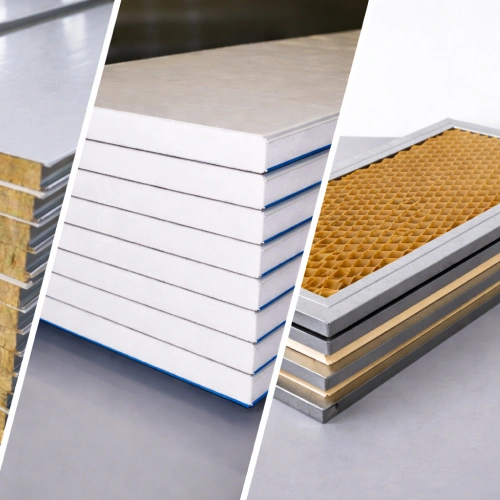

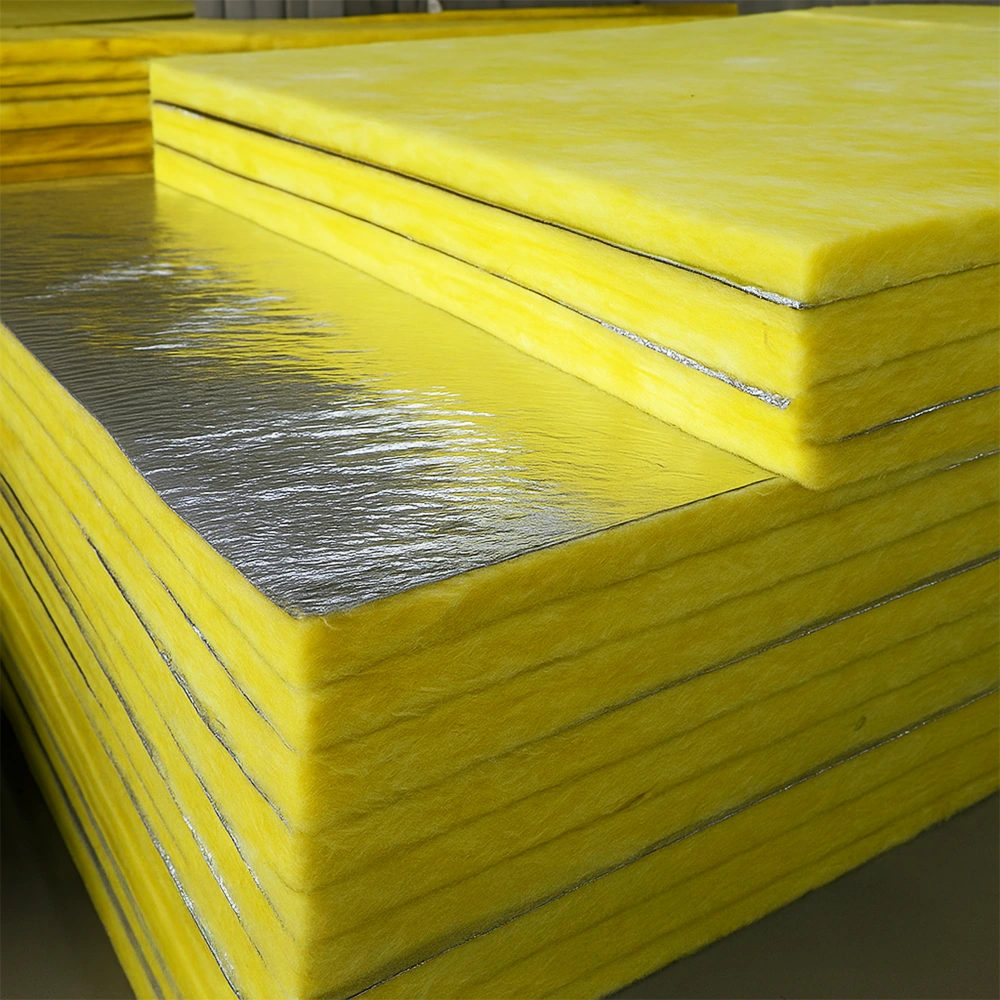

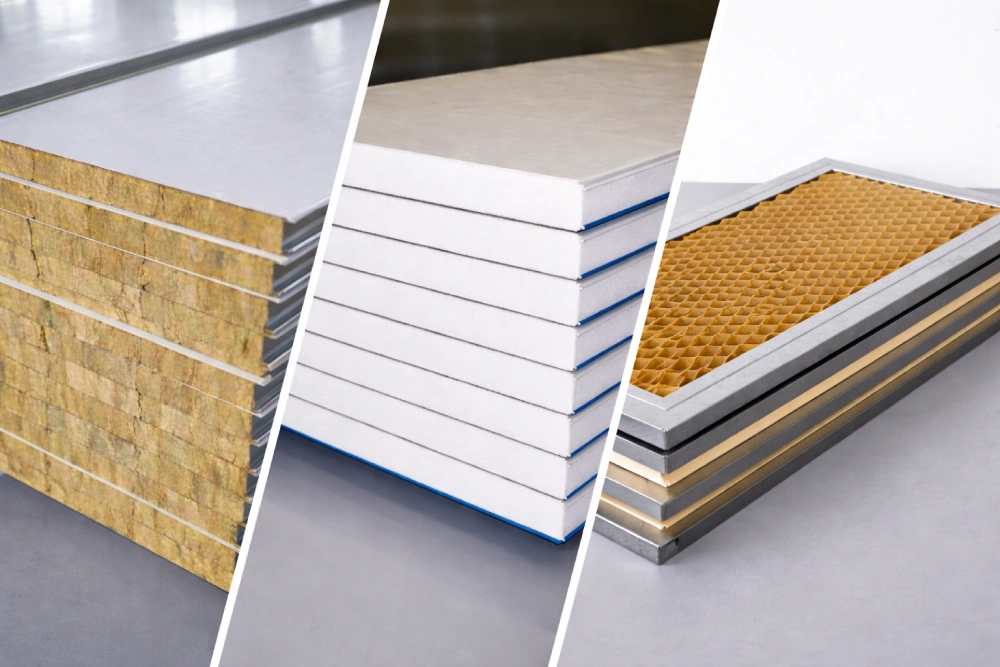

Infills

We utilize High-Density Rockwool for fire-rated zones, PUF for superior thermal stability, or Aluminum Honeycomb for ultra-lightweight, non-combustible requirements.

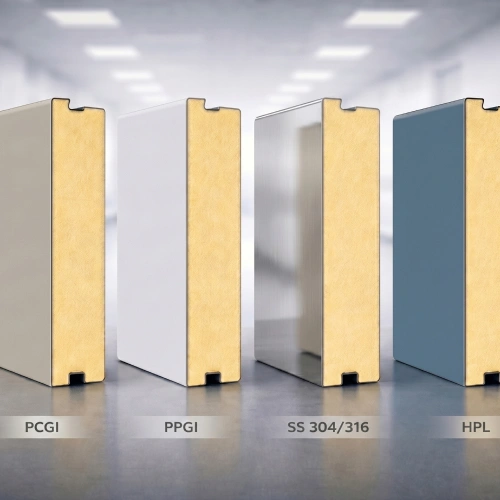

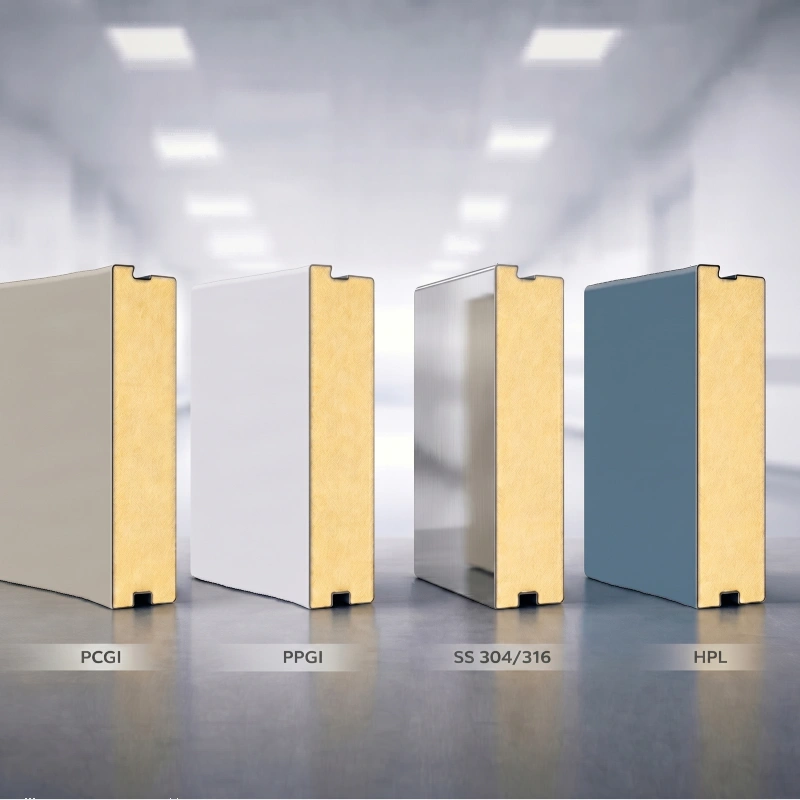

Surface Skins

Panels are encased in PCGI (Powder Coated Galvanized Iron), PPGI, Stainless Steel (304/316) or high-grade Laminates, finished with specialized coatings that resist corrosion from aggressive sterilization agents like Vaporized Hydrogen Peroxide (VHP).

Airtight Interlocking

Our unique tongue-and-groove system ensures a completely level, flush surface that eliminates ledges and particle traps.

Seamless Integration & Maintenance Access

A cleanroom is only as sterile as its weakest joint, which is why our system integrates all components into a single, flush ecosystem. We utilize large-radius aluminum covings at all wall, floor, and ceiling transitions to eliminate 90-degree corners where microbes typically accumulate. This seamless design extends to our double-glazed view panels and cleanroom doors, which are mounted perfectly level with the wall skin. To maximize operational uptime, our walkable ceiling grids allow maintenance teams to service HEPA filters and utilities from a technical area above the cleanroom, keeping your production floor sterile during routine inspections.

Operational Flexibility & Compliance

Modern infrastructure requires the ability to evolve. Our non-progressive system architecture allows for the removal of any individual panel without disturbing adjacent walls a critical feature for facilities that frequently upgrade heavy machinery. To maintain a clutter-free environment, every partition can be pre-engineered with integrated return air risers and concealed conduits for power, data, and gases. This rigorous engineering ensures your facility meets the highest global standards, including ISO 14644, WHO-GMP, and USFDA requirements, turning your physical infrastructure into a validated strategic asset.

Specifications of Panels

  • ✔ Thin & light weight construction
  • ✔ Wide variety of filler PUF / EPS FOAM / ROCK WOOL
  • ✔ Wide variety of Surface material PCGI / PPGI / AL / S.S. / Laminates
  • ✔ Available in Thickness 50mm / 80mm / 100mm
  • ✔ Progressive and Non-Progressive.
  • ✔ Doors compatible with panel materials
  • ✔ Excellent insulating property
  • ✔ Less joints as compared to any other system of panel design.
  • ✔ Design engineering and installation support from HVAX.
  • ✔ HVAX systems are perfectly airtight, hence no problem in pressure balancing & cross contamination
  • ✔ Panels can easily be re-locatable or dismantled
  • ✔ Inbuilt return air riser
  • ✔ Concealed electrical fittings

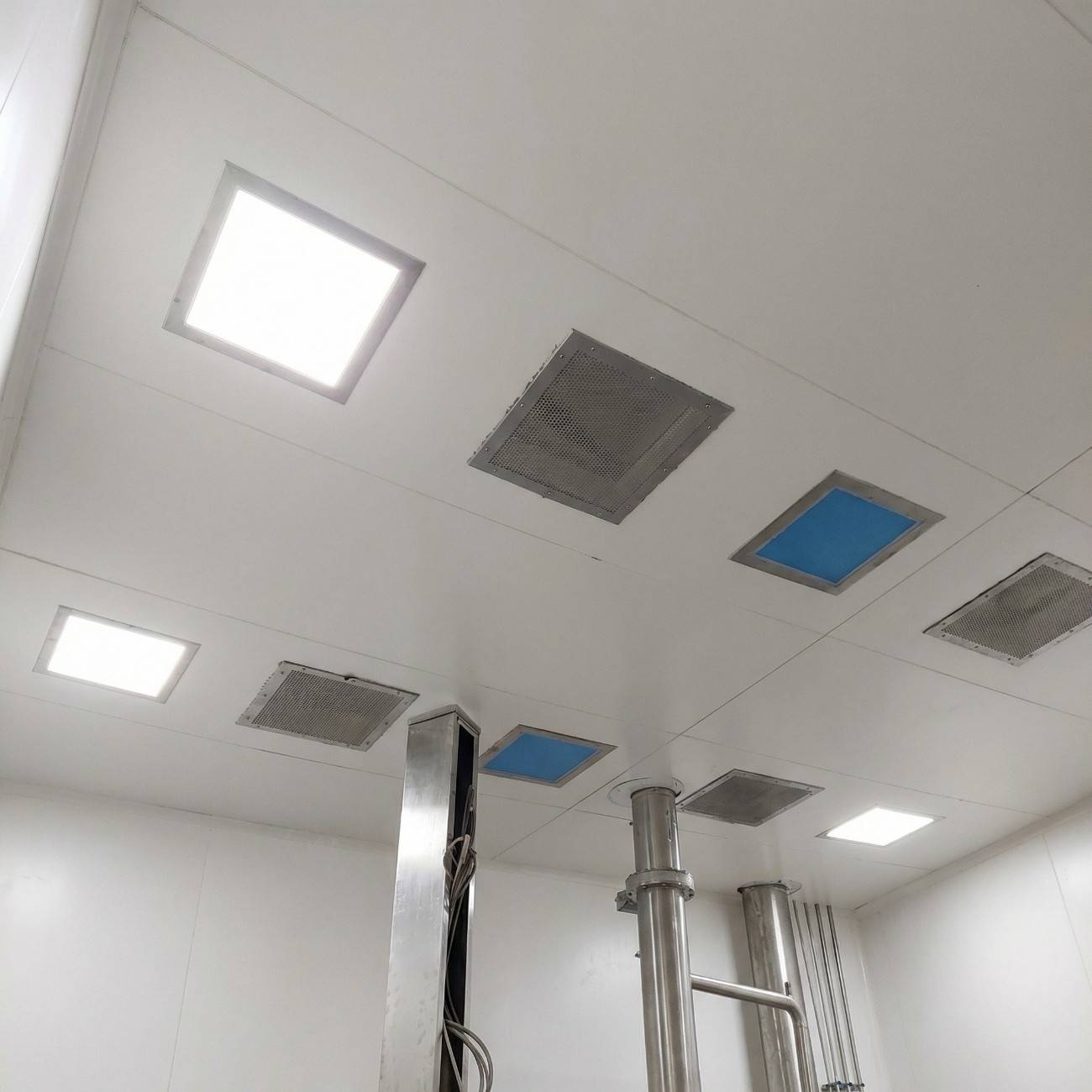

Ceiling Features

Walkable, Serviceable ceiling

Concealed suspension

Interior flush surface

Flexible to make cutout at site for lighting, Hepa filter etc.

Door Features

Electrical interior system available

Flush mounted, built in viewing window

Automatic drop seal

SS door handle

Single leaf / double leaf type

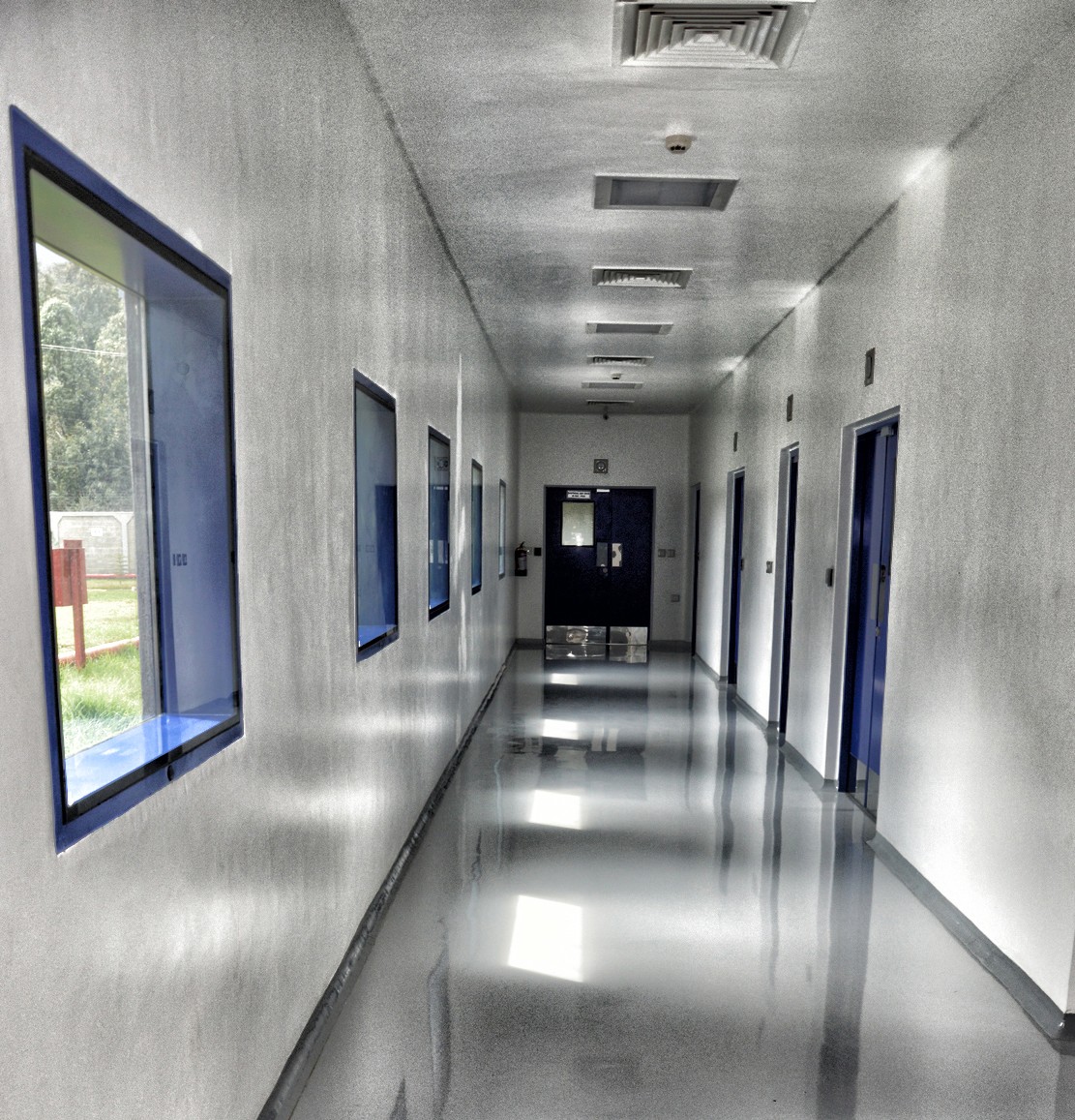

View Panels

Single glazed window

Flush mounted & double glazed window with nitrogen fill or silica gel pocket to prevent Condensation

Cleanroom Partition

MODULAR

Critical Doors

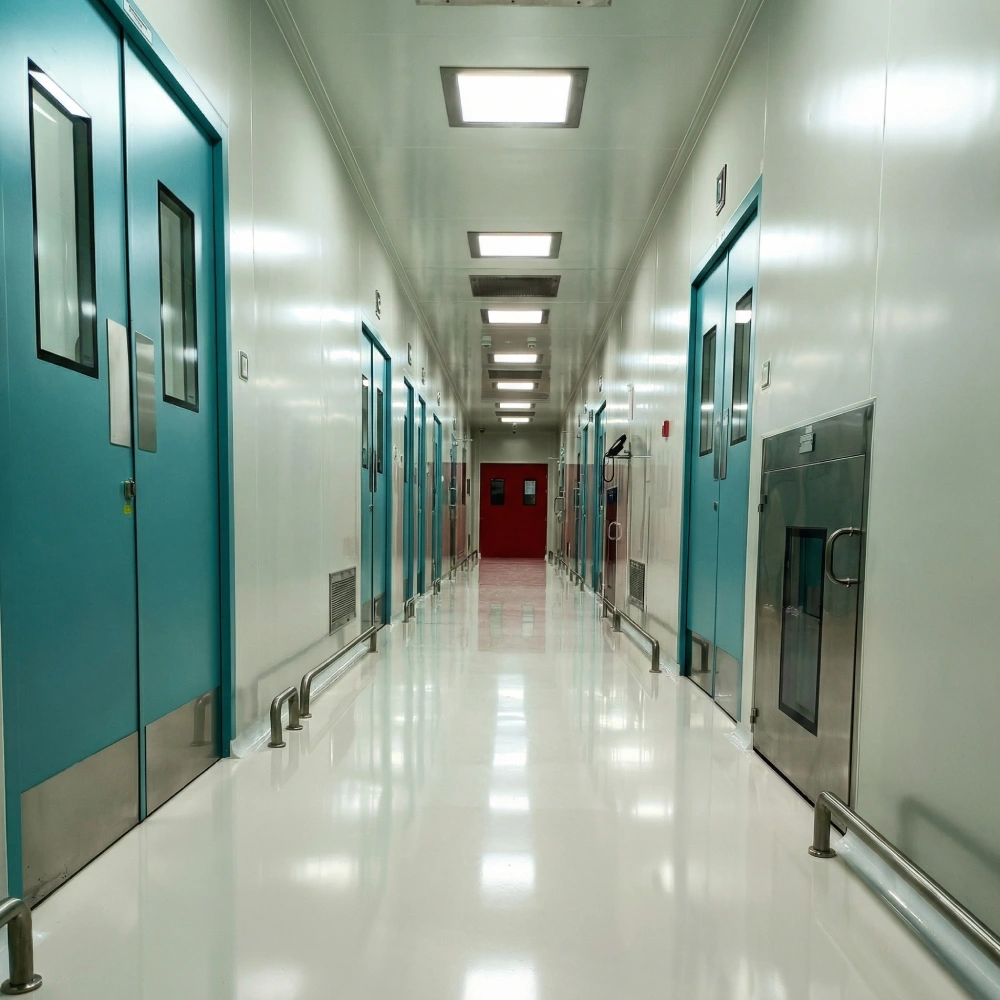

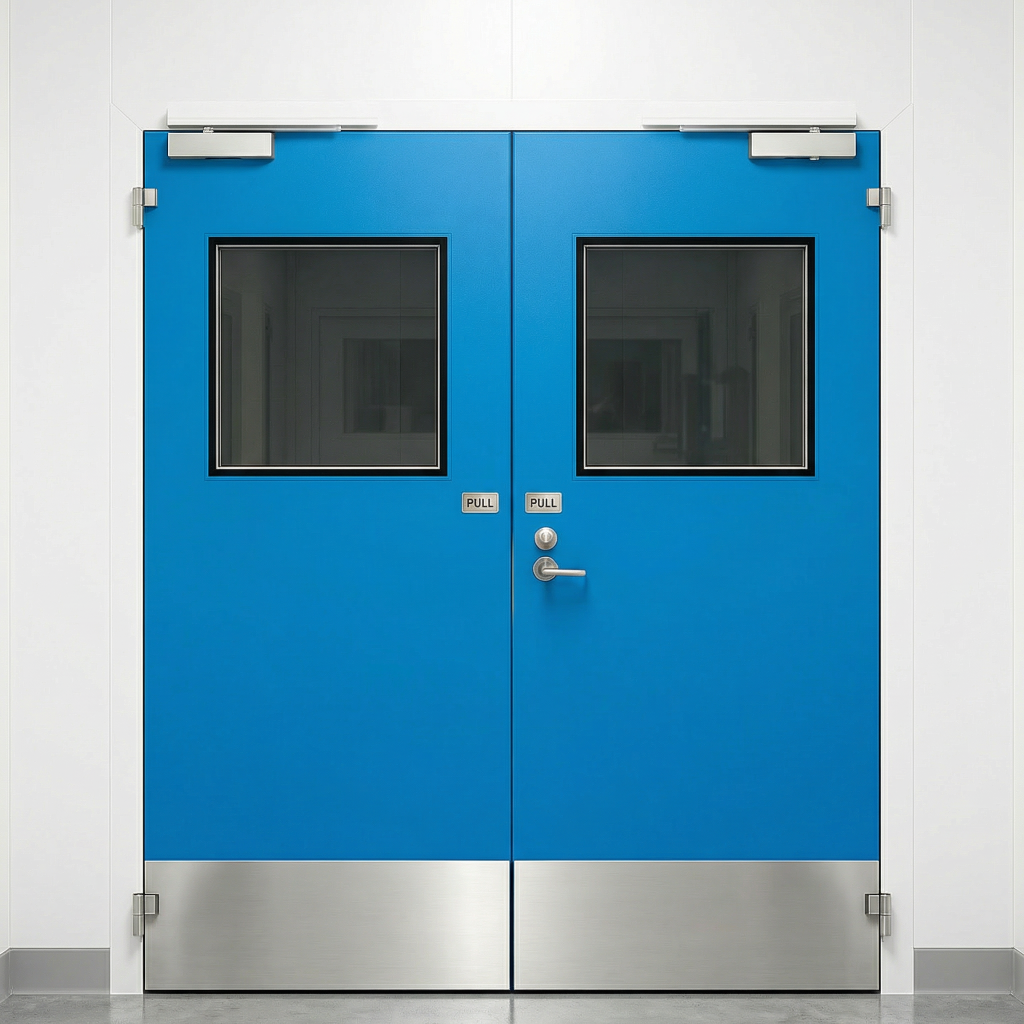

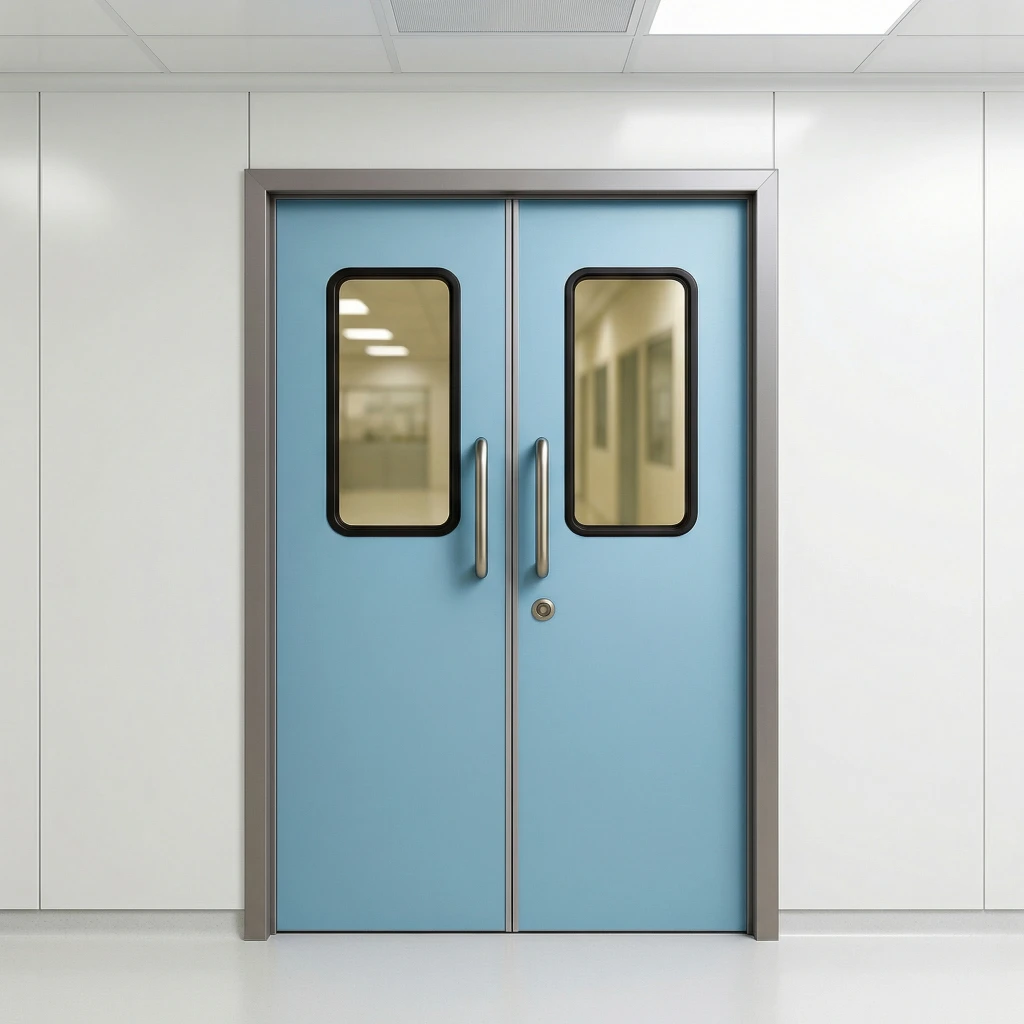

Clean Room Doors

Engineered for Controlled Environments

Hermetically sealed construction GMP compliant & sanitizable Manual / Semi / Automatic operation Ball-bearing hinges for smooth movement Compatible with interlock systems

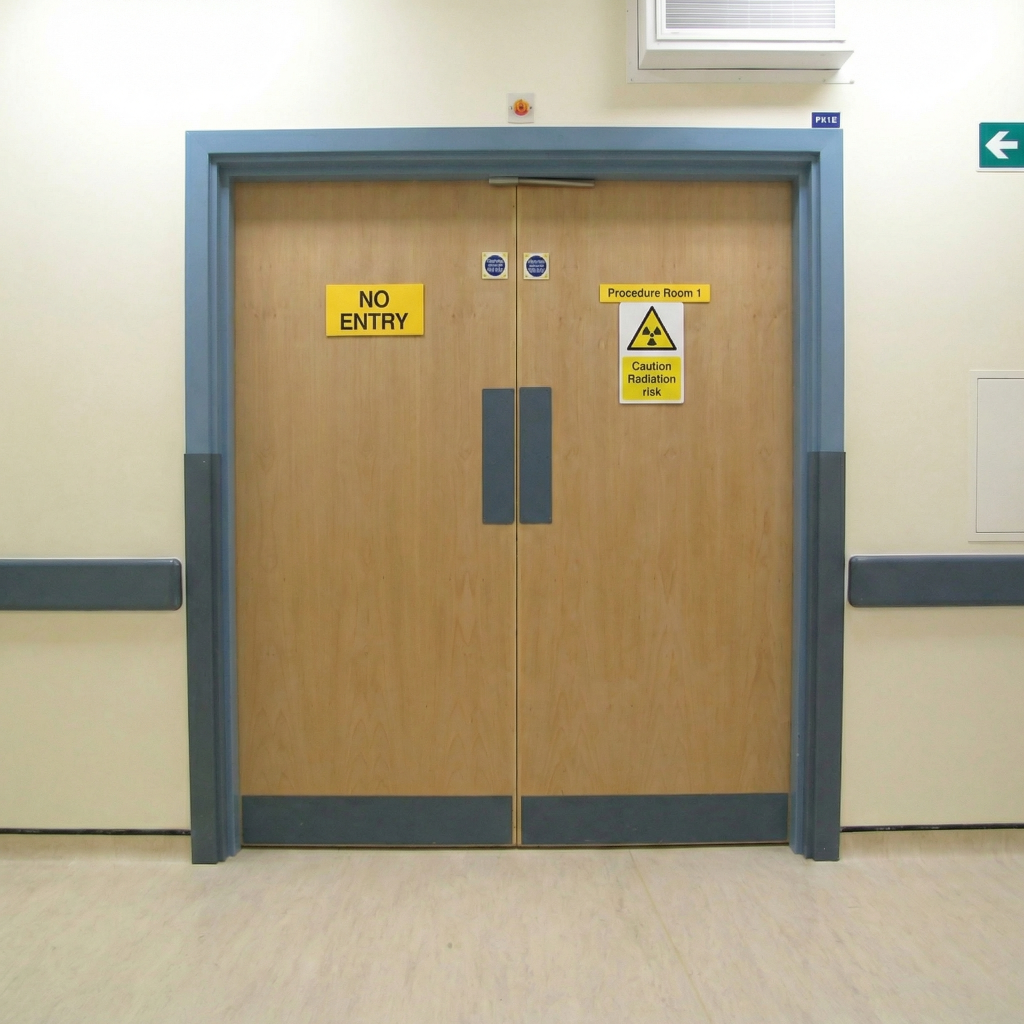

Lead Line Doors

Radiation Protection with Structural Precision

Lead-lined core for radiation shielding Powder-coated durable finish Compatible with vision panels Smooth swing or sliding mechanism Suitable for hospitals & diagnostic centers

Non-Critical Doors

Fire Rated Doors

Certified Protection. Proven Performance.

Fire resistance up to 120 minutes Certified to BS 476:20 & BS 476:22 Fire-rated vision glass available Panic bar & door closer compatible 43mm door leaf thickness

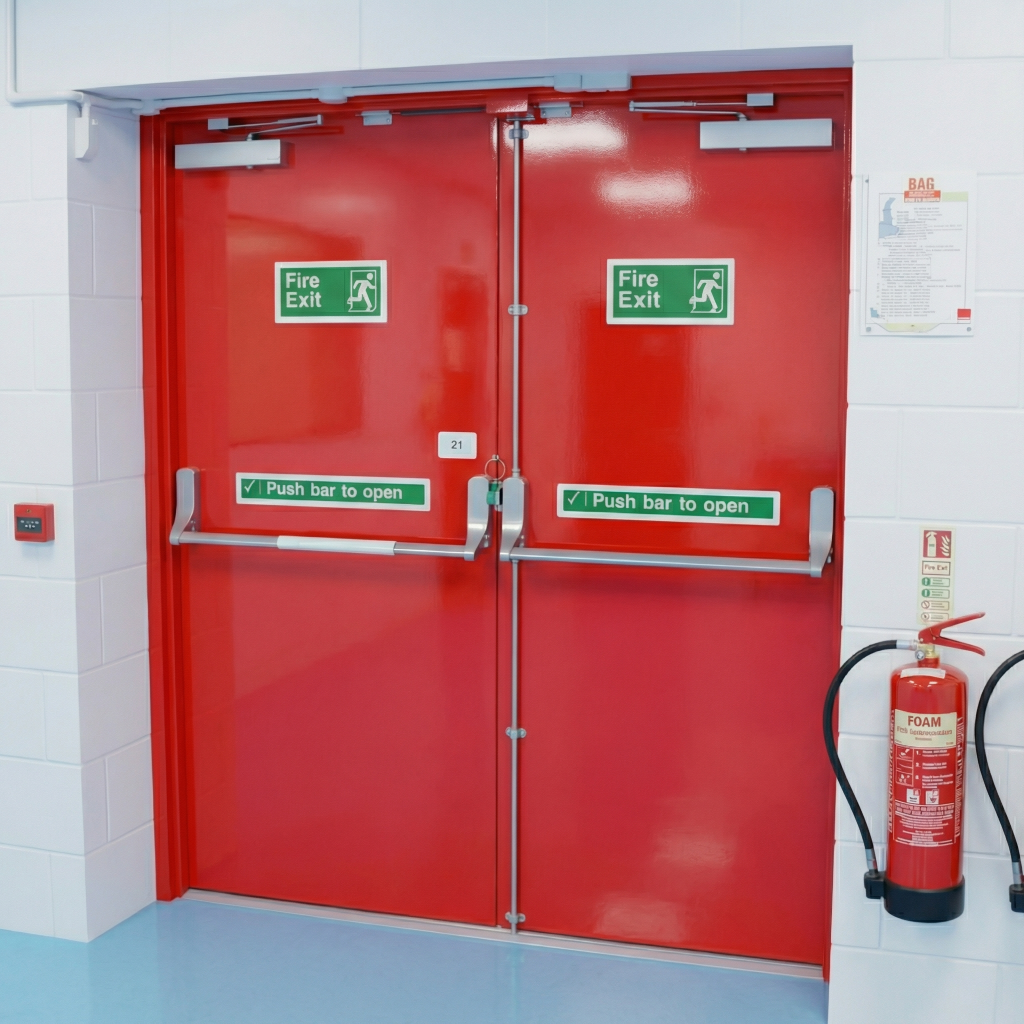

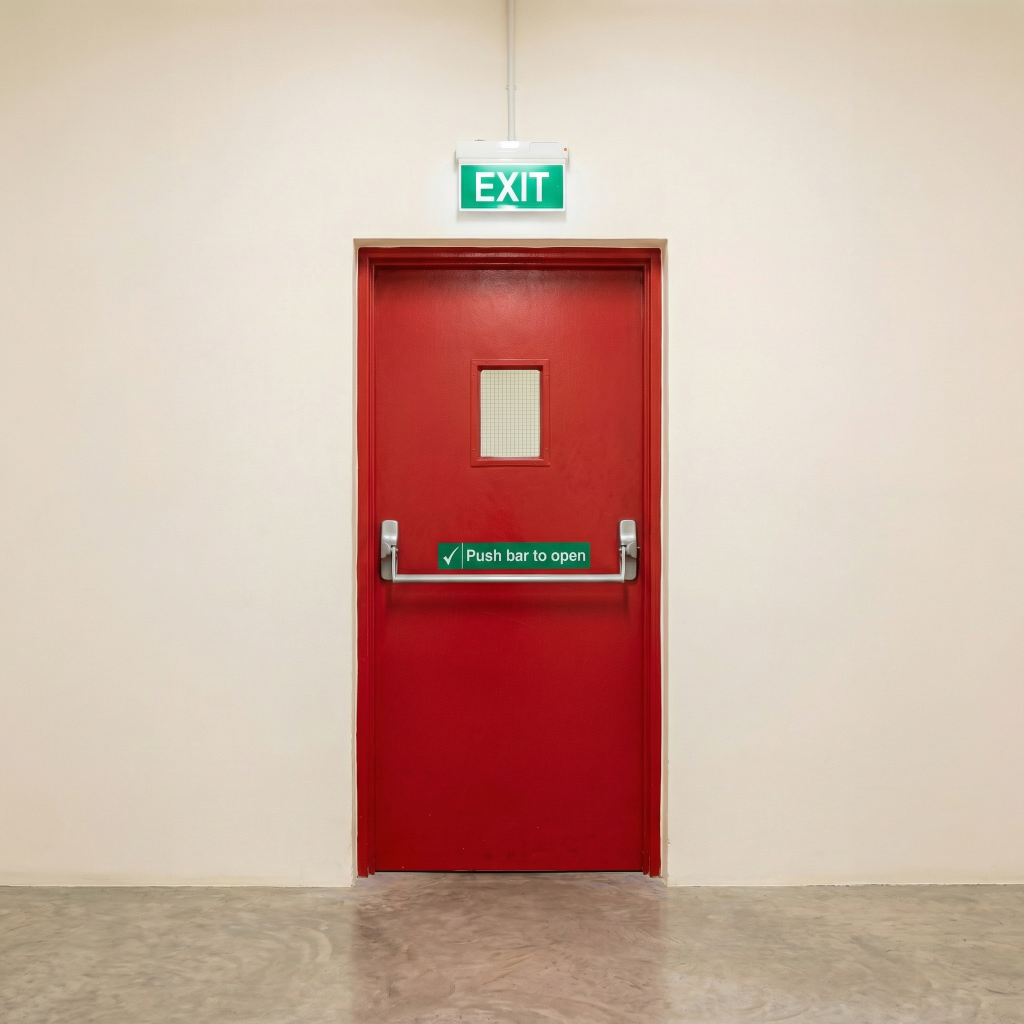

Emergency / Fire Exit Doors

Fast Egress. Zero Compromise.

Panic bar & panic trim options Heavy-duty hinges Powder-coated galvanized steel High visibility finish Suitable for high-traffic areas
